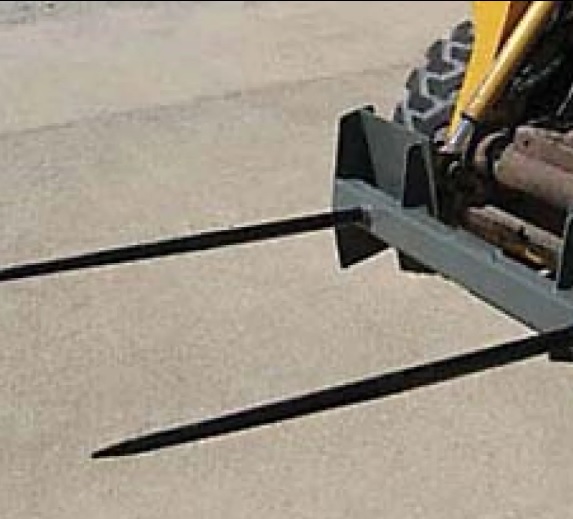

Skid Steer Bale Attachments
Designed for use on skid steer and tractor front loaders that use the industry standard “universal quick-attach” system. Patented design allows easy access to the skid steer seat with its step through feature. Models are offered for round bales as well as square bales. Forged tapered bolt-in spears allow easy spear penetration of the bale.
Model SSB-2200
Patented (No. 8,061,956) Skid Steer Single Bale Spear.
Rated at 2,200 lbs. Designed to interface with “universal” skid steer quick-attach system. Bolt-in tapered spear has a useable length of 42″. Item #831060, 129 lbs.
View SSB-2200 Parts List
Model SSB-3000
Patented (No. 8,061,956) Skid Steer Double Bale Spear.
Rated at 3,000 lbs. Designed to interface with “universal” skid steer quick-attach system. Bolt-in tapered spears has a useable length of 42″. Spears spaced 32″ apart. Item #831070, 146 lbs.
View SSB-3000 Parts List
Model SSRB-330
Patented (No. 8,061,956) Skid Steer Triple Bale Spear.
Rated at 3,000 lbs. for handling single or double (with optional uprights 831095) Mid-size Square bales. Bolt-in tapered spear has a useable length of 26″, spaced 26-1/2″ apart. Interfaces with “universal” skid steer quick-attach system. Optional bolt-on uprights for SSRB allows handling two 3′ x 3′ x 8′ bales at once. Item #831080, 165 lbs.
View SSRB-330 Parts List
Model SSRB-340
Patented (No. 8,061,956) Skid Steer Triple Bale Spear.
Rated at 4,000 lbs. for handling single or double (with optional uprights 831095) Large-size Square bales. Bolt-in tapered spear has a useable length of 42″, spaced 26-1/2″ apart. Interfaces with “universal” skid steer quick-attach system. Optional bolt-on uprights for SSRB allows handling two 4′ x 4′ x 8′ bales at once. Item #831090. 190 lbs.
View SSRB-340 Parts List
