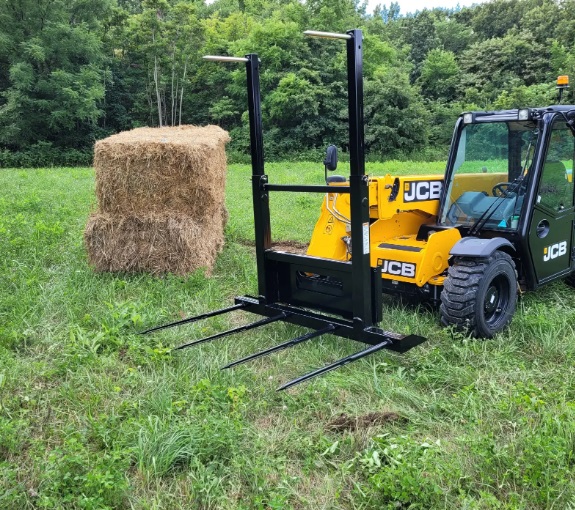

Front Loader Large Rectangular Bale Carriage with Adjustable Uprights
Designed for Skid Steers, Tractor Front Loaders, Telehandlers and select Wheel Loaders. Unit picks up two 4’x4’x8’ or three 3’x3’x8’ rectangular bales with uprights in fully extended position. Easily transport one 4’x4’x8’ or one 3’x3’x8’ rectangular bale with the uprights in retracted position. Rated at 6,000 lbs., these products feature four bolt in spears with usable lengths of 40.5″ and two balance spear. The frame provides great visibility and measures 72″ wide, 84″ high, center is 46″ wide. With a retracted height of 50”.
RBH-6500U
Designed for tractor front loaders requires optional interfacing brackets available for most bolt-on or quick attach systems.
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
RBH-6520M
Designed for Manitou Telehandlers models MLT-625, MLT-634, MLT-840, MLT-960, Gehl CT-516, CT-618, CT-723 New Holland LM 435(Blue), LM 5040, LM 5050, LM 5060, TH7.42, TH9.35
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
RHB-6530SS
Design for Skid Steers and tractor loaders equipped with “universal” skid steer quick attach system
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
Unit weight 463 lbs.
RBH-6540JCBQ
Designed for JCB Telehandler with Q-Fit models JCB- 525, 530, 532, 536, 540, 550, 5508, 505-19, 505-22,506-36, 508-40, 506-23TC, 508-66TC, 509-23STC, 509-45STC, 510-44STC, 510-55STC, 512-26STC, 526-56AGRI, 527-58AGRI, 535-95AGRI, 536-60AGRIPlus, 541-70AGRI Plus, 560-80AGRI Plus.
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
RBH-6550JDWL
Designed for John Deere wheel loader models 244J & 304J.
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
RBH-6560 JD Global Cat. 2
Designed for John Deere tractor front loaders with Global Category 2 carriers
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide
RBH-6570 JRB-416
Designed for wheel loaders equipped with JRB-416 quick coupler
Designed to pick-up two 4′ x 4′ x 8′ or three 3′ x 3′ x 8′ rectangular bales, or a single bale in its’ retracted position. Four bolt-in spears (useable length 40.5”) support the bales on the bottom with 2- upper balance spears. Frame is 72” wide x 84” high, center is 46” wide. In its’ retracted positon frame is 72” wide x 50” high, center is 46” wide.
