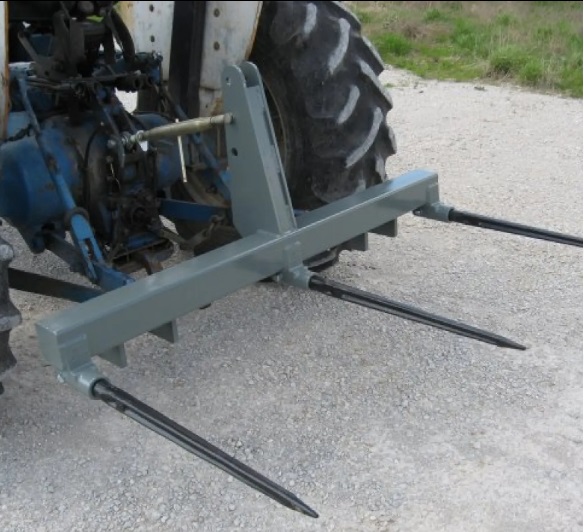

3-pt Bale Spears
Designed for use on tractor 3-pt. hitches only. These bale spear feature tapered forged spring steel spears allowing easier spear penetration of and withdrawal from the bale.
All models (except BSF-1523) use a 42mm diameter bolt-in spear with a useable length of 42-inches providing outstanding service life. Frames are made from rugged square tubing.
Model BSF-1523
3-pt. spear for handling round bales up to 1,800 lbs. Tapered main spear has useable length of 44” with two welded balance spears. Fits Cat I/II hitches (shipped with 7/8” pins). Item #830235, 57 lbs.
View BSF-1523 Parts List
Model HS-2200
Rated for round bales up to 2,200 lbs. Bolt-in forged spear with 42” usable length. Two welded balance spears. Cat. I/II Quick Hitch compatible (shipped with 7/8” pins). Item #832310, 72 lbs.
Model HS-3000
Dual bolt-in forged spears with 42” usable length. Spears are spaced 26” apart allowing bale to be picked up & not lose its orientation. Rated at 3,000 lbs. Fits Cat I/II Quick Hitches (shipped with 7/8” pins). Item #830775, 105 lbs.
Model HS-330
Triple bolt-in forged spears with 26” usable length. Spears are spaced 28-1/2” apart, ideal for mid-size square bales. Overall unit width 57-3/4” Fits Cat II/III Quick Hitches. Item #832615, 163 lbs.
Model DBH-449
Four bolt-in forged spears with 42” useable length. Designed to handle two round bales at once. Overall unit width of 96”. Fits Cat II/III Quick Hitches. Item #832610, 251 lbs.
Model DBH-6000
Four bolt-in spears (usable length 42”), square frame design allowing transport of two 5-ft or 6-ft diameter round bales at once. Rated at 6,000 lbs. Overall unit width 76”. Fits Cat. II/III Quick Hitches. Item #834100, 295 lbs.
