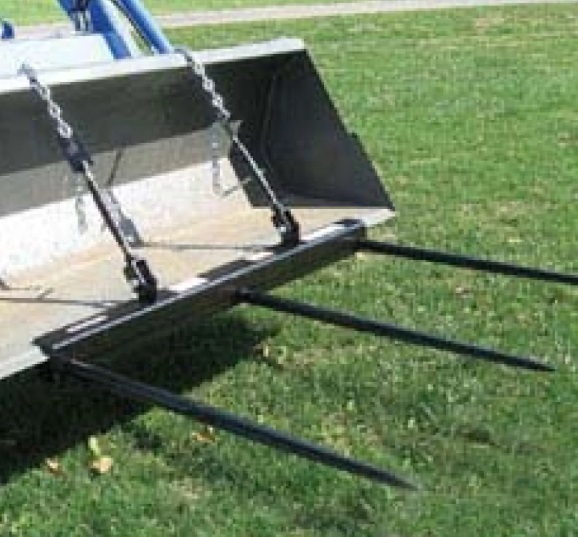

Bucket Bale Attachments
Quickly convert your front loader bucket into a tool for handling large round bales. Each spear mounts over the bucket cutting edge with heavy angle iron for support and utilizes the bucket underside for leverage
Model BBSF-20
Bolt-on Bucket Bale Spear for round bales. Rated at 2,000 lbs. Bolt-in spear has useable length of 42″. Requires drilling one 17/32″ diameter hole in the bucket. Bolt-together design.
Note: Spears must be inserted into bale. DO NOT USE spears as pallet forks, or go under the bale). Item #830185, 65 lbs
View BBSF-20 Parts List
Model CBSF-2000
Clamp-on Bucket Bale Spear for round bales. Rated at 2,000 lbs. Uses chain & turnbuckle system. Bolt-in spear has useable length of 42″. Bolt-together design.
Note: Spears must be inserted into bale. DO NOT USE spears as pallet forks, or go under the bale). Item #830190, 76 lbs.
View cbsf-2000 Parts List
Model CBSF-2028
Clamp-on Bucket Bale Spear for round bales. Rated at 3,000 lbs. Uses chain & turnbuckle system. Bolt-in spears have useable length of 42″.
Note: Spears must be inserted into bale. DO NOT USE spears as pallet forks, or go under the bale). Item #831920, 102 lbs.
View cbsf-3028 Parts List
Model CBSF-3025
Clamp-on Bucket Triple Bale Spear for large square bales. Rated at 4,000 lbs. this unit uses dual chain & turnbuckle assemblies. With an overall width of 55″ and three spears spaced on 26″ centers, spears have 42″ useable length.
NOTE: Bale spears are to be inserted into bales – never under bales. Failure to do this can allow bale to roll back when loader is raised, causing serious injury or death. DO NOT USE spears as pallet forks, or go under the bale. Item #831955, 185 lbs.
View cbsf-3028 Parts List
